Heavy Duty Box Machine

Introducing the Heavy Duty Box Machine

from T-ROC Equipment LLC

T-ROC Equipment LLC offers the Heavy Duty Box Machine (HBM), a versatile and efficient solution for your packaging needs. Our HBM is designed for easy one-pass operation and is capable of producing up to 300 boxes per hour.

We cater to a wide range of packaging requirements:

• 50 different box styles
• 5000 dimension combinations
• 72-inch, 86-inch, and custom width infeeds
• Quick-change cutting blades
• Designed and built for 24/7 operations

With our HBM, you can input box dimensions from a color touch screen, memory, or bar code. Feel free to get in touch when you need packaging machinery.

Why Your Business Needs the Heavy Duty Box Machine

Our HBM automated box-making machine can recreate specific package designs, so it's perfect for customers who need to produce smaller quantities of different size corrugated containers.

Here are some key features:

• Runs material from 32 ect single wall up to 600-pound double wall
• Produces up to 500 boxes per hour depending on size and style

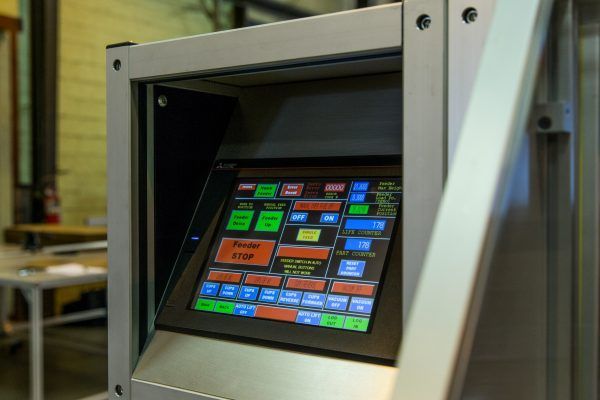

• Offers versatile programming accessible through a large 10.5-inch color touchscreen
• Can store 5000 different combinations of dimensions in memory
• Saves warehouse and production space: 15 x 30 feet for the 86-inch model

We invite you to reach out to us for your packaging operations.

Operations for Set-Up of the Heavy Duty Box Machine

With the HBM, setting up the machine, making a box, and creating inner packaging is simple:

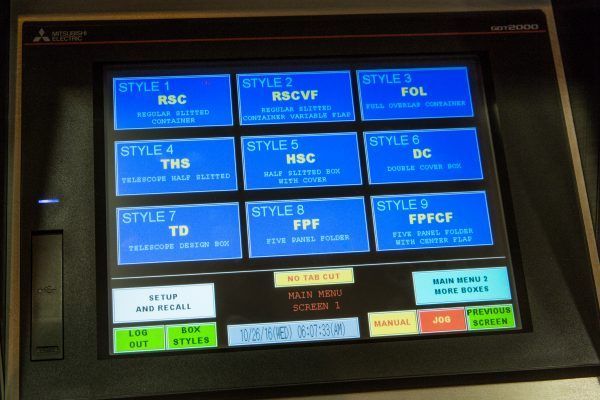

• Select a box blank style icon
• Choose the dimensions, quantity, and tabs
• Follow the touchscreen prompts to start feeding sheets of material

Excess board that is trimmed during production can be used to create additional boxes, and environmentally friendly corrugated inner packaging can be produced quickly.

The HBM can create a variety of packaging styles:

• Long containers for extrusions
• Folders for books
• Dividers
• Pads
• Standard boxes

To learn more and request a free evaluation of your operations, request a call today!

Installations by T-ROC Equipment LLC

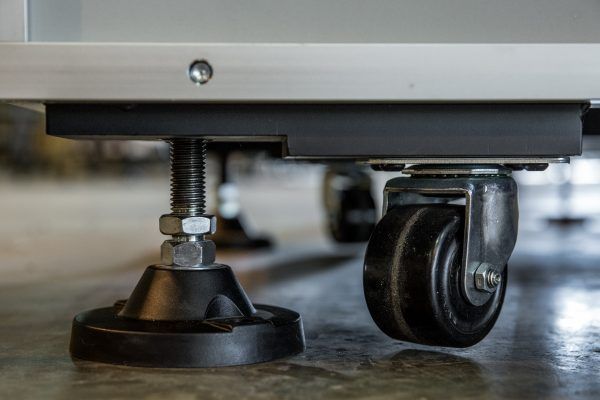

Our sturdy roller casters make it easy for one person to move the HBM machine into position, and our adjustable leveling feet keep it firmly in place. The 86-inch HBM model requires 15 x30 feet for operation.

The HBM operates on 208/230 VAC single phase power @ 20 amps and 1.5 SCFM @ 80 PSI of compressed air. Fused disconnect and air prep unit are provided with the machine.


In most instances, the HBM can be moved from the shipping dock to production operation in less than an hour! Contact us now for more information.

Why T-ROC Equipment?

As the first and only American firm to design and manufacturer an on-demand, box-making machine, we at T-ROC Equipment are committed to delivering high-quality products and excellent customer service. Here are some reasons why you should choose us:

• Free ROI evaluations
• Nationwide delivery
• 500 machines built and in operation since 2000
• The latest technology
• One-year machine and component warranty

We encourage you to contact us today. We respond to calls within 24 hours

Contact T-ROC Equipment Today!

At T-ROC Equipment, we are ready to meet your packaging needs with our Heavy Duty Box Machine. Don't hesitate to get in touch with us and let us help you streamline your packaging process.
