Overview

The Automated Box Gluer (ABG) is designed to complement T-Roc Equipment’s Automated Box Makers. The ABG is designed to run single or double wall material, and it uses a low temperature, hot melt food grade glue that sets up in five seconds to permanently glue boxes.

Automated Box Gluer

features

  • Glue any box style with glue tabs
  • Control panel offers easy operation
  • auto detection of glue tab for faster gluing
  • Glue boxes up to 42 inches wide by any width by any depth
  • Runs single wall or double wall material
  • Food grade hot melt glue sets in five seconds

operation

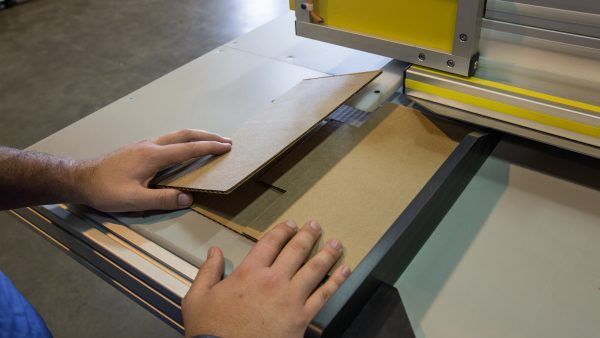

The ABG is designed for effective and easy operation. Operator simply aligns the box blank with the in-feed guide and durable rollers drive the material and compress the tab during the five second glue set-up time. The ABG glues inside or outside tabs.

_u9a9925

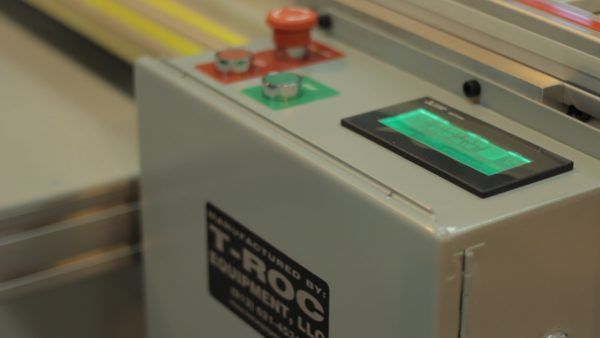

Control Panel

Easy to use control panel allows you to enter manual dimensions if needed, The ABG has auto detection of glue tab for faster gluing.

box-gluer-control-screenshot

BOX STYLES

The ABG can glue any box style that uses a glue flap. Moreover, the ABG glues inside or outside glue flaps. It will glue boxes up to 42 inches wide by any length and depth.  Hot Melt Glue allows the box to be used after five seconds. The ABG can glue RSC boxes as small as 3″ x 3″. Or tube 3″ x 3″ x any length.

_u9a9924

EASY INSTALLATION

Requiring 8 x 9 feet of operating area, the ABG has sturdy built-in roller casters for ease of movement. Once in position, the machine is set firmly in place with its adjustable leveling feet. The ABG can be running an hour after deliver. The ABG operates on 120 VAC @ 30 amps and .5 SCFM @80 PSI of compressed air. Fused disconnect and air prep units come with the machine.

_u9a5104
